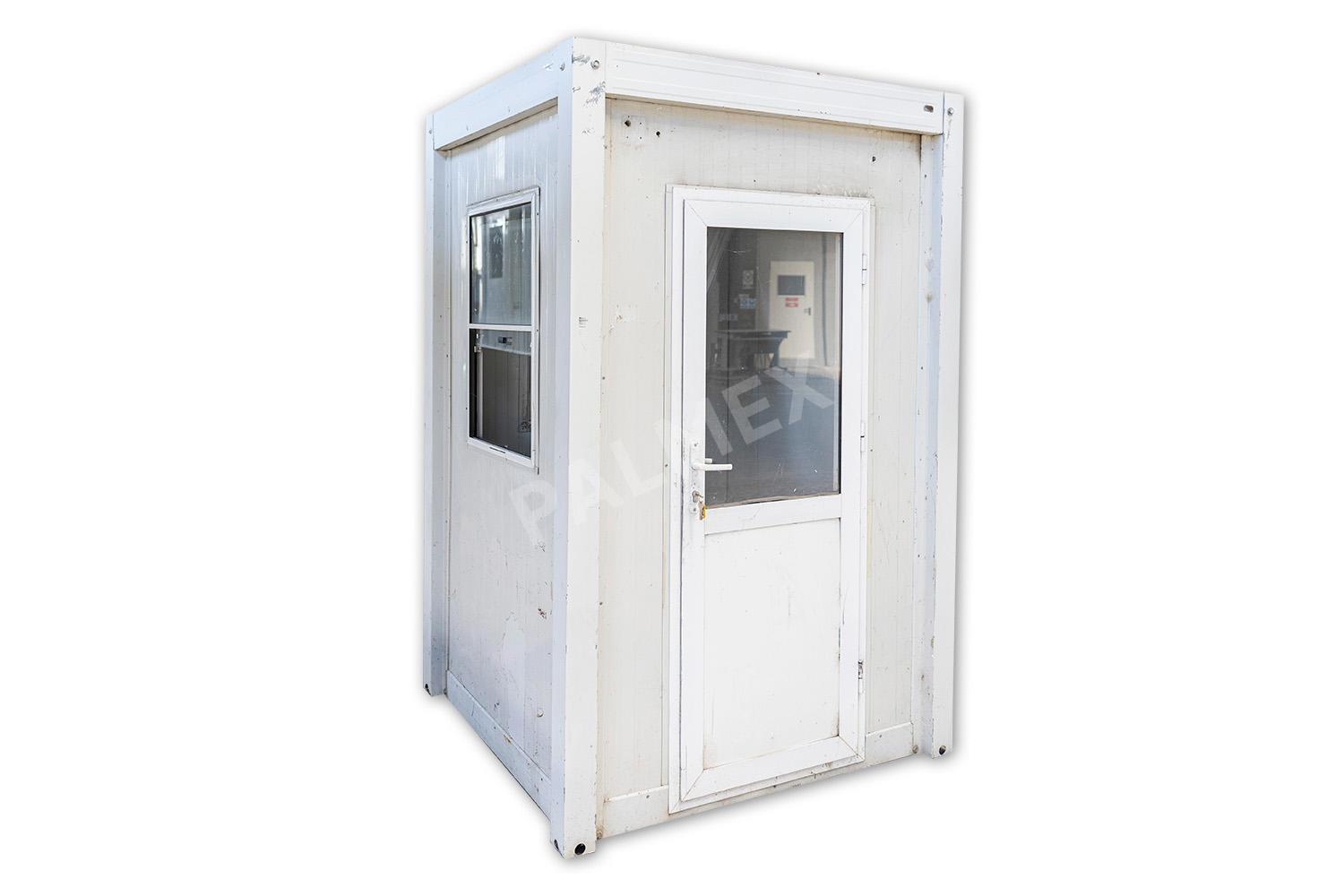

VTS 1 security booths SH

Top to bottom floorboard made of:

• Double-glazed galvanized sheet (0.5 mm);
• Cold profiled galvanized metal structure, reactive and painted primer RAL 9006;
• FERMACELL fibre cement 16mm;
• Tarkett 2 mm PVC heavy traffic linoleum;

Breaking strain: 400 kg/m².

Roof, top to bottom made of:

• Cold profiled galvanized metal structure, reactive and painted primer RAL 9006;
• 40 mm Sandwich board, 3 folds;

Breaking strain: 250 kg/m². The support beams are cold profiled, made of galvanized sheet, 2 mm thickness.

• 1 IP65 doze for electrical energy connection;

• automatic fuses box;
• 2 PT SHUKO double sockets;
• 1 PT SHUKO switch;
• 1 interior 18 W LED lamp;

• type C 1 RAL 9002 40 mm sandwich board;
• 1 RAL 9002 710x1840 mm aluminium door;
• 1 670x850 mm aluminium window which can be opened;
• 2 fixed 670x850 mm aluminium windows;
