This 4m HI-FIX Sanitary Container with 3 WCs is fully equipped, it has a metallic structure and sandwich panels and it is a modern and practical solution for ensuring hygiene in the areas where there are no permanent sanitary facilities. The Palmex Sanitary containers are made of materials that can withstand extreme weather conditions or high or low temperatures, as they are equipped with thermal insulation and soundproofed in order to ensure the user’s comfort.
- reinforced corrugated combined board (0.8 mm DX51);
- cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
- OSB 18 mm EGGER water-repellent;
- Tarkett 2 mm PVC linoleum for heavy traffic;
Breaking strain: 400 kg/m².
Roof, top to bottom made of:- cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
- double-glazed galvanized sheet (0.5 mm);
- anti-condensation coating;
- 100 mm mineral wool, C1 ISOVER/Ursa norm;
- sandwich board 40 mm polyurethane;
Breaking strain: 250 kg/m². Support beams are cold profiled, made of galvanized sheet, 2 mm thickness. The superior frame has a section which allows the intake of rainwater and evacuation through the support beams.
Sanitary group made of:- 3 ceramic WC tanks + flushing tanks + PVC toilet seats;
- 1 ceramic sink with mirror;
- 1 liquid soap dispenser;
- 3 metallic dispensers for toilet paper;
- PVC pipes for 110 mm drainage;
- 20 mm PPR pipes for water supply;
- 1 20L boiler;
Electrical installation
On the outside, it is made of:- 1 CEE 220-230 V tripolar socket with IP 65.
- automatic fuses box;
- 2 PT SHUKO double sockets;
- 1 PT SHUKO switch;
- 2 18 W LED lamp.
- type C 1 RAL 9002 40 mm sandwich polyurethane board (guaranteed for 10 years);
- 1 1000×2050 mm metallic RAL 9002 NINZ UNIVER door;
- 1 500x500 mm WHITE PVC tilt opening window (profile 6 KMG chambers).
Production lasts approximately
5 working days
Transport in
3 working days
Unloading takes
30 min on site
Easy to connect to
the sewage system
Multiple destinations
You will only concentrate
on your business plan
Frequently asked questions
Below, you will find the most frequently asked questions.
Plisse Panel
- Exterior micro nerves for a higher resistance
- Electrostatic field painting
- DX51 resistant steel
- Thermal efficiency with high yield
WC
- Resistant ceramic material
- Shock-resistant water closet
Batteries
- Italian stainless steel
- Salfe&Close technology
- Withstands over 100,000 open-close cycles
20L boiler;
- Adjustable thermostat
- On/Off switch
- Safety valve
- Magnesium anode rod

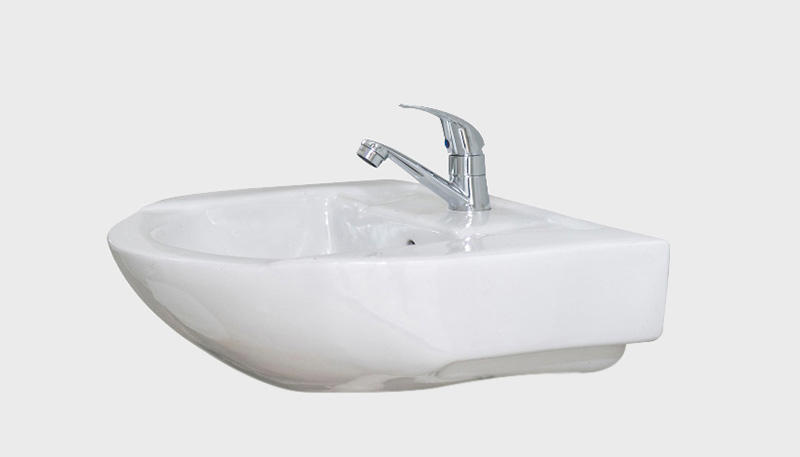

Sink
- Quality enamel
- Highly resistant ceramic material
- 40 CM width
Windows
- KMG Profile 6 chambers Austria
- 4 mm+ 4mm Saint Gobain double glazing window
- VORNE hardware for opening-closing
- Tilt opening
Ninz metallic doors
- made of processed “Sendzimir” hold galvanized sheet, folded by pressing
- removable tilt system for applying on finished floor
- interior structure made of undulated honeycomb-type fibre firmly fixed on the board
- detachable threshold for assembly without threshold
Linoleum
- Class AC4 quality linoleum for heavy traffic
- Available in 2 colours Universe UN03 and UN09
- Non-slip
Scame exterior socket
- IP65 2P+N 16 A single-phase power supply
- Kick resistance
- CLICK-IN rapid use
Differential fuse box
The fuse box is a panel where all the modular appliances are installed, with the purpose of ensuring the distribution of electrical energy. Also here, you will find the protection, measure, and command elements of the electrical circuits.
The fuse box contains several elements: DIN rail, protective earth bar and neutral conductor.
Quality LED lamps
- Applied simple and light catch
- High degree of 180 degree light emission
- Neutral light, easy on the eyes
Plisse Panel thickness
- You can choose the thickness of the exterior walls:
- - 60 mm
- - 80 mm
- -100 mm
Container width
- The containers can also be custom-made with a 3m width so that you can benefit from extra space
Modular upgrade
- Will permit connection to other containers, horizontally as well as vertically
Heating systems
- Economy electrical convector
- TESY premium electrical convector
Window
- Additional window
- Oscillating opening
On the inside
- Storage shelves
- Metallic structure
- MDF shelves
