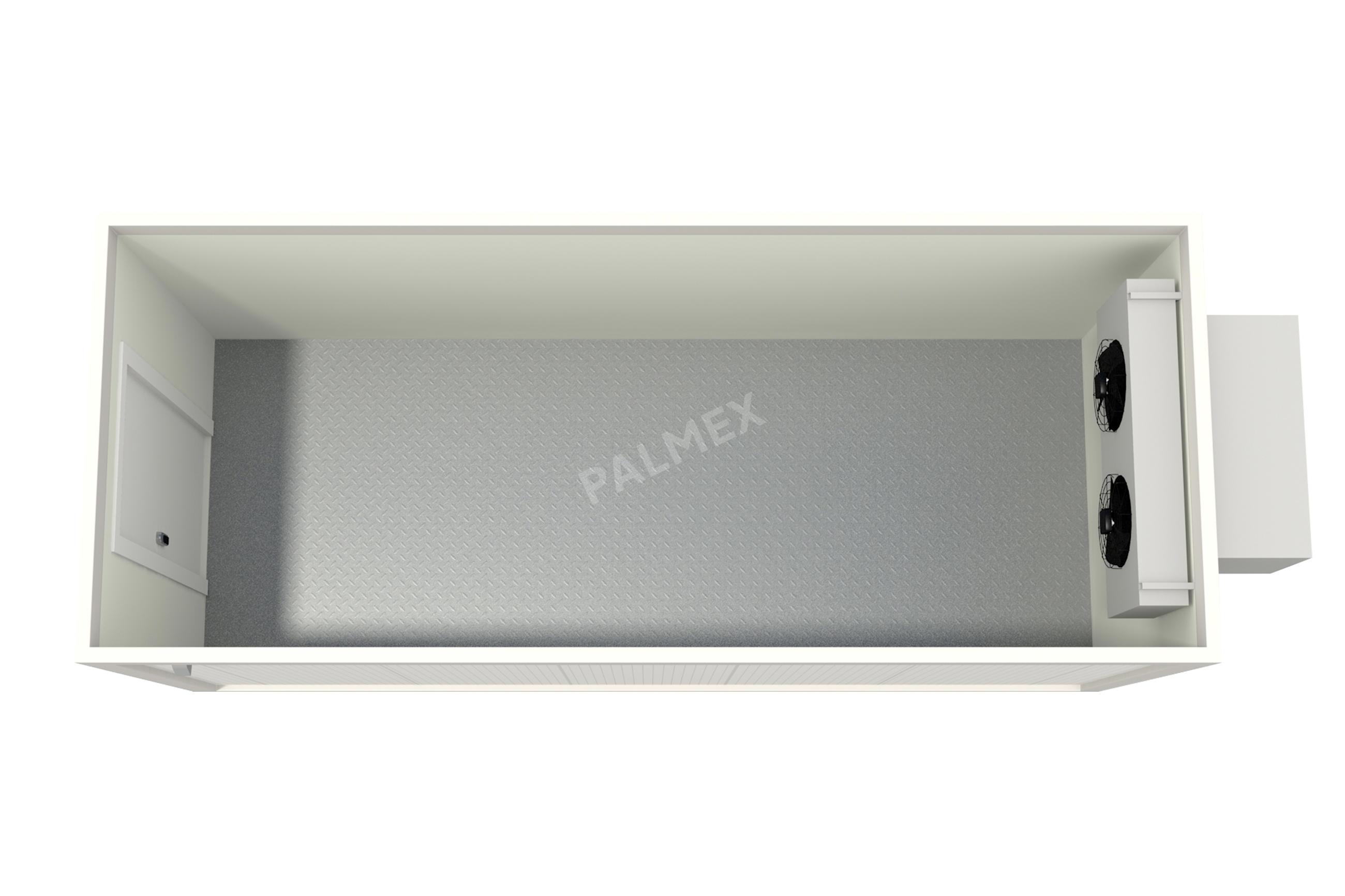

If you need a storage solution or you want ship your perishable goods to any corner of the world with end-to-end visibility, this 6m HI-FIX Freezer container is the ideal solution for your business.
- reinforced corrugated combined board (0.8 mm DX51);
- cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
- Tego 18 mm EGGER water-repellent;
- Aluminum base plate 1.5mm;
Breaking strain: 400 kg/m².
Roof, top to bottom made of:- cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
- double-glazed galvanized sheet (0.5 mm);
- anti-condensation coating;
- 100 mm mineral wool, C1 ISOVER/Ursa norm;
- sandwich board 100 mm polyurethane.
Breaking strain: 250 kg/m². Support beams are cold profiled, made of galvanized sheet, 2 mm thickness. The superior frame has a section which allows the intake of rainwaters and evacuation through the support beams.
Electrical installation
On the outside, it is made of:- 1 CEE 220-230 V tripolar socket with IP 65.
- automatic fuses box;
- 2 PT SHUKO double sockets;
- 1 PT SHUKO switch;
- 2 interior 18 W LED lamp;
- type C 1 RAL 9002 100 mm sandwich polyurethane board (guaranteed for 10 years);
- 1 1000×2000 mm Frigo door;
Production lasts approximately
5 working days
Transport in
3 working days
Unloading takes
30 min on site
The 6m option has
space for large products
Easy to handle
You will only concentrate
on your business plan
Frequently asked questions
Below, you will find the most frequently asked questions.
Cooling system
- A controlled temperature of -20ºC to -15ºC is maintained in these warehouses;
- Cooling unit FGG30 / 2516Z [2726 W / -28C T evaporation / +32 °C T recirculation / R449A] including evaporator/switch panel with electronic control;
Plisse Panel
- Exterior micro nerves for a higher resistance
- Electrostatic field painting
- DX51 resistant steel
- Thermal efficiency with high yield
Frigo door
- 1000×2000 mm
- Black PVC handle
Floor
- Aluminum base plate 1.5mm;
- Non-slip
Scame exterior socket
- IP65 2P+N 16 A single-phase power supply
- Kick resistance
- CLICK-IN rapid use
Differential fuse box
The fuse box is a panel where all the modular appliances are installed, with the purpose of ensuring the distribution of electrical energy. Also here, you will find the protection, measure, and command elements of the electrical circuits.
The fuse box contains several elements: DIN rail, protective earth bar and neutral conductor.
Quality LED lamps
- Applied simple and light catch
- High degree of 180 degree light emission
- Neutral light, easy on the eyes
Container width
- The containers can also be custom-made with a 3m width so that you can benefit from extra space
Modular upgrade
- Will permit connection to other containers, horizontally as well as vertically
On the inside
- Storage shelves
- Metallic structure
- MDF shelves
